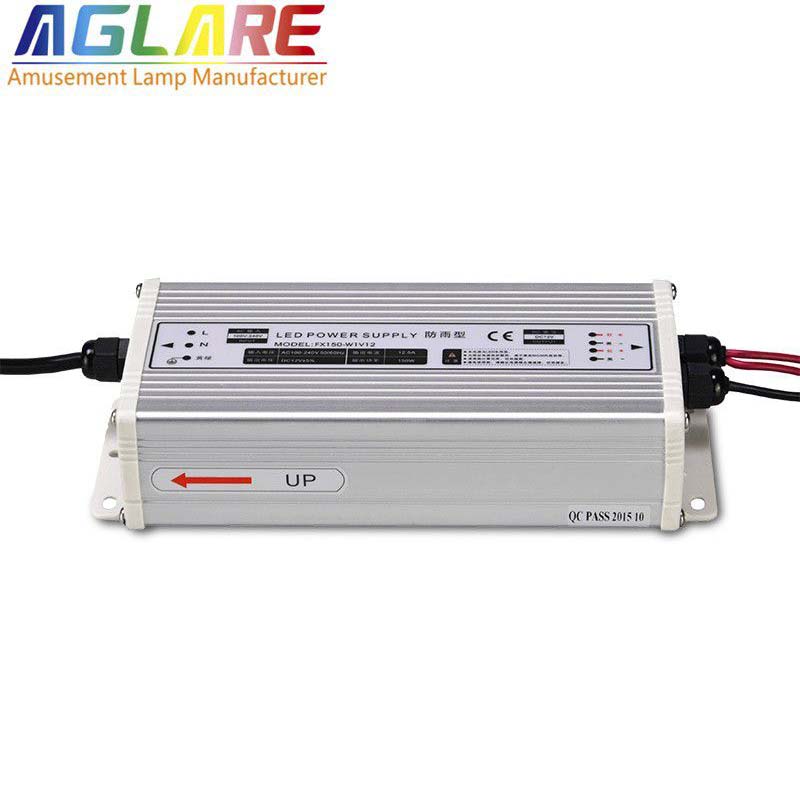

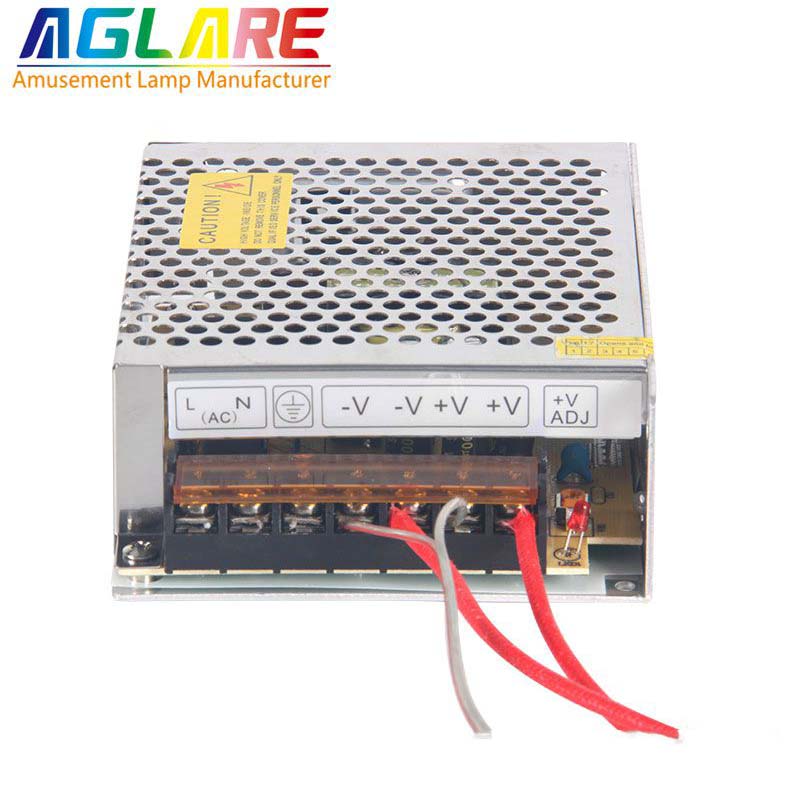

dc12v 16.5a 200w switching power transformer short circuit protection power supply led rohs ac adapter

灯功率： 200w

对比询盘

Block diagram Output berating Static characteristics Overall dimension	1.Low price and high reliability 2.105 output capacitor 3.AC input power suitable for the world 4.High efficiency and low operation temperature 5.Soft-start current can reduce the AC input impact effectively 6.With short-circuit and overload protection 7.Compact size, light weight 8.100% full-load burning test 9.Installed with EMI filter, minimum wave

Block diagram

Output berating

Static characteristics

Overall dimension

1.Low price and high reliability
2.105 output capacitor
3.AC input power suitable for the world
4.High efficiency and low operation temperature
5.Soft-start current can reduce the AC input impact effectively
6.With short-circuit and overload protection
7.Compact size, light weight
8.100% full-load burning test
9.Installed with EMI filter, minimum wave

Product Advantages

Dual transistor forward circuit plan, more stable, more reliable
Built-in EMI filter circuit, no interference, no blink or slash phenomenon
Short circuit, over load & over current protection, safe and secure
Unique copper slice built-in transformer technology, low temperature & good EMC performance
The output inductance using alsifer sendust material (Fe-Si-Al Alloy Core), high output efficiency
Sufficient power output, 100% full load burning test
