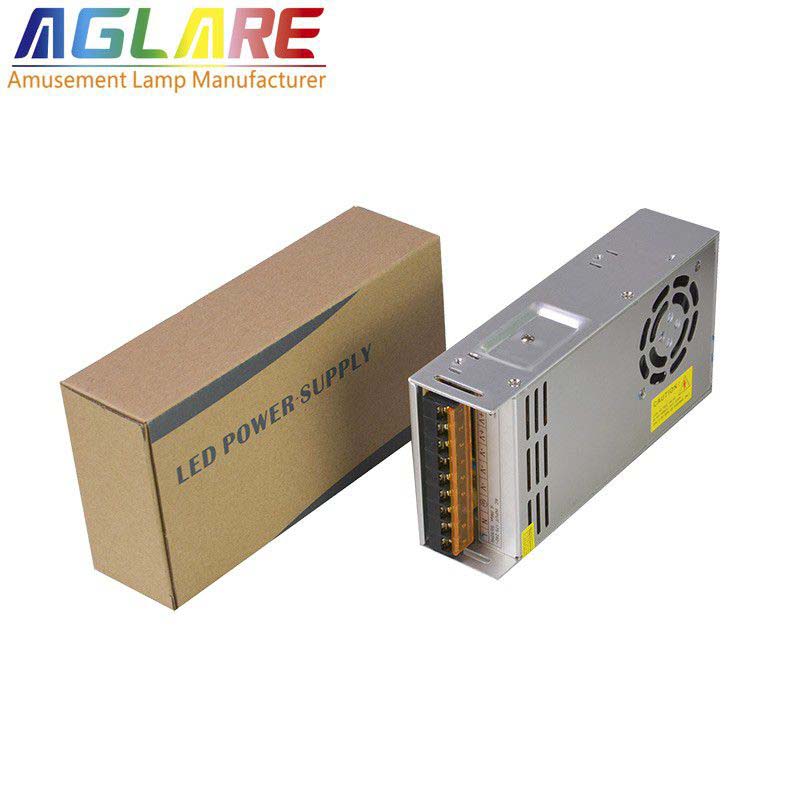

400W DC 12/24V 33.33A led switching power supply
| Product Parameters | ||
| Model No： | YJ400-H1V12 |
| Power： | 400W | |
| Size： | 199*98.5*50mm | |
| IP Degree： | IP22 | |
| Input voltage： | AC 175-240V | |
| Output voltage： | DC 12/24V | |
| Output current： | 33.33/16.67A | |
1. AC input range selectable by switch.
2. Protections: Short circuit / Overload / Over voltage / Over temperature.
3. Forced air cooling by built-in DC fan.
4. Withstand 300vac surge input for 5 second.
5. Built-in cooling Fan ON-OFF control.
6. Built-in constant current limiting circuit.
7. LED indicator for power on.
8. Fixed switching frequency at 90KHz.
9. Low cost, high reliability.
10. 2 years warranty.
